Types of Pressure Measurement: Absolute, Relative (Gauge), and Differential

Pick wrong reference and you invite false alarms, noncompliance, shutdowns.

Those false alarms and shutdowns? We watched a startup slip three days because a gauge-referenced transmitter went into a vacuum service that required absolute. The control setpoints were off by local barometric pressure (~14.2 psi at site elevation), so alarms chattered, the interlock tripped, and commissioning froze. By the time operations reset, the crew burned two shifts and a rented nitrogen skid—$18,000 gone—over a single word on a datasheet.

Then the ripple hit quality assurance (QA). The calibration records didn’t match the safety basis because the certificate read gauge (psig, pounds per square inch gauge), not absolute (psia, pounds per square inch absolute), so the auditor flagged the loop. Swapping hardware meant a new permit, rework on the impulse line, and a rush order with a two-day lead. Add one off-spec batch and extra overtime, and you’re staring at another $25,000 and a bruised go-live.

So why does a single word matter? Absolute, gauge (relative to atmosphere), and differential all measure the same thing—pressure—but each uses a different zero: vacuum, local air, or another process point. That simple baseline often gets lost across piping and instrumentation diagrams (P&IDs), specs, and vendor catalogs.

When the reference is wrong, the plant tells on itself fast. Here are the first symptoms you’ll see before anyone says “root cause.”

Nuisance trips and off-spec batches
Calibration drift that isn’t drift—just weather/altitude changes
Failed inspections and rework during start-up

Reference Pressure 101: absolute, gauge, and differential made clear

Those failed inspections and rework usually trace back to one missing word: the reference. Pressure is simply force per unit area, but instruments need a zero. Absolute, gauge, and differential differ only by what they call zero. Ambient pressure (the air around you) is a moving target: weather and altitude shift it. At sea level, it’s about 101.3 kPa (kilopascal) = 1 atm = 14.7 psia (pounds per square inch absolute). Day to day, weather swings of 1–3 kPa (10–30 mbar, millibar) are normal.

Change location and the baseline moves more. A site near 2000 m (about 6600 ft) often sits around 79–82 kPa ambient—roughly 20–22 kPa below sea level. If your device references atmosphere, that offset shows up in your reading. That’s why the choice of reference matters. It’s also why two plants can see different numbers for the exact same physical state and argue over who’s right.

Absolute pressure (p_abs) references an ideal vacuum as zero, so it ignores weather and elevation completely. If a chamber is 35 kPa absolute, it’s 35 kPa everywhere on earth. Choose this when atmospheric changes would masquerade as process changes, especially in vacuum, evaporation, and barometric-sensitive testing.

Gauge pressure (p_g) references the current ambient pressure, so p_g = p_abs − p_amb (ambient). That means the same process shifts with weather and altitude. It’s perfect when you only care about pressure relative to local air—think tire gauges, spray systems, and many closed-loop utilities.

Differential pressure is the difference between two points, Δp = p1 − p2, and may ignore atmosphere entirely. It’s the workhorse for level from hydrostatic head, flow across orifice/venturi elements, and filter/strainer health. Pick DP when the difference itself drives control or safety.

The hidden cost of choosing the wrong reference

Weather example: a storm shifts ambient by 20 mbar (2 kPa). A low-pressure line running at 6 kPa above ambient will read 33% lower on a 0–10 kPa range if you used gauge where absolute was required. Controls chase noise, valves hunt, and batch acceptance tightens. If that loop feeds a square‑root flow calculation, a 2 kPa swing on a small Δp can skew indicated flow by 10–15% instantly.

Altitude example: sea level ambient ≈ 101.3 kPa; at ~2000 m it’s ≈ 79.5 kPa. If your process truly needs 30 kPa absolute but you installed a gauge device, the reading shifts by about 21.8 kPa between sites (−71.3 kPag vs −49.5 kPag). Alarms move, recipes appear off, and calibration certificates no longer match the safety basis. That single offset ripples through reports, audits, and control tuning.

To make the risk scannable, here are the top mistakes, symptoms, impacts, and fixes.

Mistake	How it happens	Symptom observed	Impact	Fix
Using gauge where absolute is required	Ambient changes treated as process changes	Alarms drift with weather	False trips, poor control	Specify absolute (p_abs) device
Referencing differential to wrong ports	High side/low side inverted	Negative Δp unexpected	Wrong level/flow logic	Swap ports; re-zero and tag clearly
Ignoring altitude in set-up	Factory-cal at sea level, site at elevation	Off by constant offset	Bias in setpoint and reports	Calibrate on-site to local p_amb (ambient)
Overlooking overpressure protection	No snubber/seal for pulsation	Frequent sensor failure	Downtime and cost	Add snubber, diaphragm seal, or suitable range

⚠️
Caution
Reference errors look like instrument faults—verify reference before swapping hardware.

Why legacy selection fails in modern plants

Multi-site projects span sea-level terminals and mountain facilities, so ambient baselines vary. Food and pharma demand hygienic designs (flush diaphragms, sanitary seals), while hazardous areas require approvals like ATEX (European explosive atmosphere certification) or IECEx (international explosive atmosphere scheme). Canadian provinces regulate pressure equipment. In that mix, drawings and data sheets often omit the reference type, and teams assume—until a start-up test proves them wrong.

Vendor catalogs mix terms (psig, pounds per square inch gauge; barg, bar gauge; psia, pounds per square inch absolute; bara, bar absolute), and P&IDs rarely label the reference explicitly. Remote seals and capillaries add head that depends on density and temperature. Templates get copy‑pasted across elevations. Digital transmitters can compensate, but only if the reference is right. That’s how good engineers still get burned.

In Canada, fittings, instruments, and seals attached to pressure equipment may need provincial registration under a Canadian Registration Number. Miss it and procurement stalls, inspections fail, or you’re forced into costly rework. We help you check early and specify correctly.

If you’re unsure how rules apply to your sector, see our guidance by CRN industries and match your application to the right path before you order.

Absolute vs. Gauge vs. Differential: a fast selection framework

So how do you match your application to the right path before you order? Start here. Pick the reference first, then the device. We use this one-page table to settle decisions in design reviews and MOC (management of change) meetings in minutes. Example: vacuum packaging at 1.2 psia? Choose absolute; open tank head? Go gauge or DP. Formulas next.

Type	Reference baseline	Core formula	Best for	Avoid when	Example use
Absolute (p_abs)	Ideal vacuum (zero)	p_abs = p_g + p_atm	Vacuum systems, sealed vessels, boiling/sterilization	Avoid gauge in ambient swings; use absolute here	Autoclave pressure monitoring
Gauge/Relative (p_g)	Current ambient pressure (p_atm)	p_g = p_abs − p_atm	Open tanks, HVAC lines, general process lines	Moving between elevations or weather-sensitive specs	Compressor discharge pressure
Differential (Δp)	Two process points (p1 and p2)	Δp = p1 − p2	Filter status, orifice flow, level in closed tanks	When safety logic needs absolute value	Filter clog monitoring

💡
Pro Tip
Units don’t carry reference—symbols do. Use p_abs, p_g, and Δp on P&IDs and datasheets consistently.

Formulas, conversions, and a five‑step selection

Those symbols become your math: p_abs = p_g + p_atm and Δp = p1 − p2. For units, 1 bar = 100 kPa ≈ 14.5 psi (pounds per square inch). p_atm (ambient air) changes with weather and elevation, so sea level is ~101 kPa while high sites may sit near 80–90 kPa. Quick check: if p_g = 2 bar at sea level, p_abs ≈ 3 bar.

Use these bold steps to lock your spec fast. We’ll move from reference choice to range, then confirm with a back‑of‑napkin calculation you can show your team.

Step 1: Identify the reference: absolute (vacuum zero), gauge (ambient zero), or differential (two points). Tie it to the control or safety need.
Step 2: Document p_atm for the site (or range) if using p_g; capture elevation and expected weather swing (e.g., ±2 kPa).
Step 3: Define range, overpressure, and accuracy; target normal at 50–80% of span. Note pulsation, temperature, and fill fluid limits.
Step 4: Map to device type: gauge or absolute sensor, or a differential transmitter with proper static rating and materials.
Step 5: Validate with a calc: convert p_g to p_abs with local p_atm; check Δp for level (density × gravity × height) or flow (square‑root relation).

🧮
Tool Idea
Use our interactive calculator to convert gauge to absolute with your local p_atm and back. City auto-suggest preloads typical p_atm, so you validate ranges in seconds.

How it plays out: real-world industry scenarios

With your numbers validated in seconds, we see the same patterns on site. Each vignette starts with a bold industry label and flags the right reference. We’ll show how to verify it next.

HVAC & Building Services: Selecting Δp across filters to trigger maintenance before energy penalties escalate.
Pharma & Biotech: Using p_abs in sterilizers/autoclaves to ensure consistent cycles regardless of weather.
Oil & Gas / Chemicals: Choosing p_g for line pressure but p_abs for vapor pressure-critical distillation.
Water/Wastewater: Measuring Δp for level in pressurized tanks to avoid false inventory swings.
Boilers & Pressure Vessels: Reference choice affects code compliance; see boilers and pressure vessels CRN registration to align instruments, ratings, and documentation before inspection.

Verification and testing: prove it before startup

Before that inspection, how do we prove your choice will behave on day one? We run three passes: bench, loop, site. Bench first: simulate p_abs (absolute) with a vacuum pump, p_g (gauge) with a hand pump against ambient, and Δp (differential) with a dual-source calibrator. We hit 0/25/50/75/100% and record error to spec (±0.1% span typical). Document the reference on the tag and in the DCS (distributed control system)/PLC (programmable logic controller). No surprises.

Loop check next: confirm 4–20 mA (milliamps) or digital HART (Highway Addressable Remote Transducer) scaling, square‑root on DP where required, damping, and alarms. Then site-calibrate to local p_atm (ambient air). Example: at 1,600 m elevation, p_atm ≈ 83 kPa—zero gauge devices to that baseline and verify Δp head corrections for remote seals. Capture as-found/as-left, serials, ranges, units, and who signed off. The goal: match reality within your uncertainty budget.

For code-stamped vessels and piping, align instrument selection with formal proof tests such as ASME hydrostatic pressure testing. Confirm test pressures, hold times, and isolation so transmitters see safe loads. We flag CRN (Canadian Registration Number) constraints early.

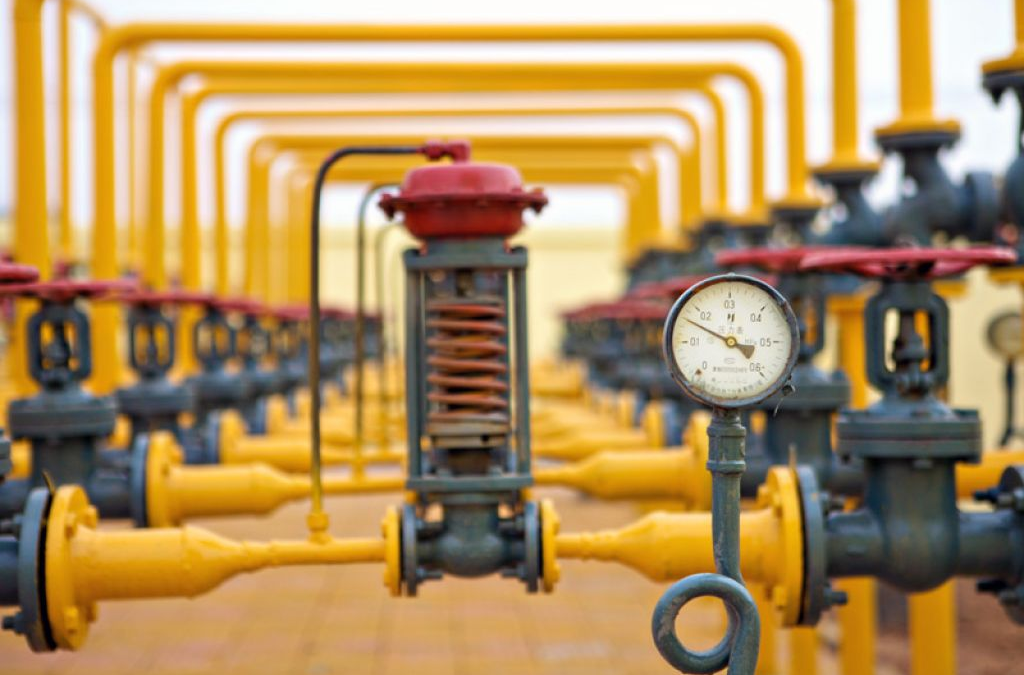

When spec risk is unknown, we qualify hardware with burst testing to establish ultimate strength and relief margins. For installed systems, we verify integrity with pressure piping testing and document boundaries, blinds, and gauges. Same rule: keep instruments isolated or rated for the test.

Order-ready pressure instrument spec checklist

You kept instruments isolated or rated during testing; now lock the spec to match what passed. Each bullet starts with a bold label like Reference type: for fast scanning.

Reference type: Absolute, gauge, or differential—state the rationale and safety/control need (e.g., absolute for vacuum, Δp for level).
Range & units: Min/nominal/max, trip points, and overpressure; specify units (psig gauge, psia absolute, kPa, inH2O) and desired turndown.
Ambient conditions: Site elevation, expected p_atm (ambient pressure) range, local weather swing, and ambient temperature extremes for start-up and worst-case.
Process conditions: Fluid/gas, temperature range, pulsation/pressure cycling, particulate, and material compatibility with wetted parts and fill fluids.
Accuracy & response: Accuracy class, total error band (including temperature/static), response time/damping, and required update rate for control protection.
Materials & connections: Wetted alloys (316L, Hastelloy), diaphragm/seal type, fill fluid, capillary length, process connection (NPT (National Pipe Thread), Tri‑Clamp (sanitary clamp), flange) and size.
Environment & approvals: Area classification (ATEX, IECEx), SIL (safety integrity level), IP (ingress protection)/NEMA, washdown, and sanitary certificates (3‑A, FDA, GMP (good manufacturing practice)).
Documentation: P&ID (piping and instrumentation diagram) tag, symbol (p_abs, p_g, Δp) on datasheet, calibration certificates, as-found/as-left records, serial numbers.
Testing & validation: Bench zero/span, five-point checks, loop verification, site calibration to p_atm (ambient pressure), and planned proof tests (hydrostatic, pneumatic) with acceptance criteria.
Compliance: Canadian Registration Number (CRN) scope, code references, and inspection requirements—see CRN help Canada for early screening so purchasing doesn’t stall.

Hydro vs Pneumatic: a quick, code-accurate comparison

Here’s the side‑by‑side we promised. We define MAWP (maximum working pressure), LSR (allowable stress ratio), MDMT (minimum metal temperature), and NDE (non‑destructive examination) so you can choose fast. Next, we show the paperwork reviewers expect.

Parameter	Hydrostatic (UG-99)	Pneumatic (UG-100)	Why it matters
Test medium	Liquid (usually water)	Dry gas (often nitrogen)	Stored energy and hazard differ
Minimum test factor	1.3 × MAWP × LSR	1.1 × MAWP × LSR	Sets test pressure; affects limits
Temperature window	MDMT+30°F to 120°F	MDMT+30°F to 120°F	Avoid brittle fracture risk
Pre-examination	Visual and NDE as specified	UW-50 examinations mandatory	Gas tests demand extra rigor
Ramp and hold	Incremental pressurize, staged holds	Slower ramp, controlled holds	Manage risk and stabilize readings
Reduce for inspection	Inspect at test/1.3	Inspect at test/1.1	Leak checks at reduced pressure
Safety risk profile	Lower; less stored energy	Higher; more stored energy	Default to hydro when feasible
Typical use cases	Most vessels and services	When liquid unacceptable or not drainable	Only when UG-100(a) conditions apply

📚
Training
If your team specifies pressure equipment, invest in a two-hour skills boost. Our

CRN training

covers scope, pitfalls, and checklists so engineers, buyers, and quality assurance teams speak the same language.
